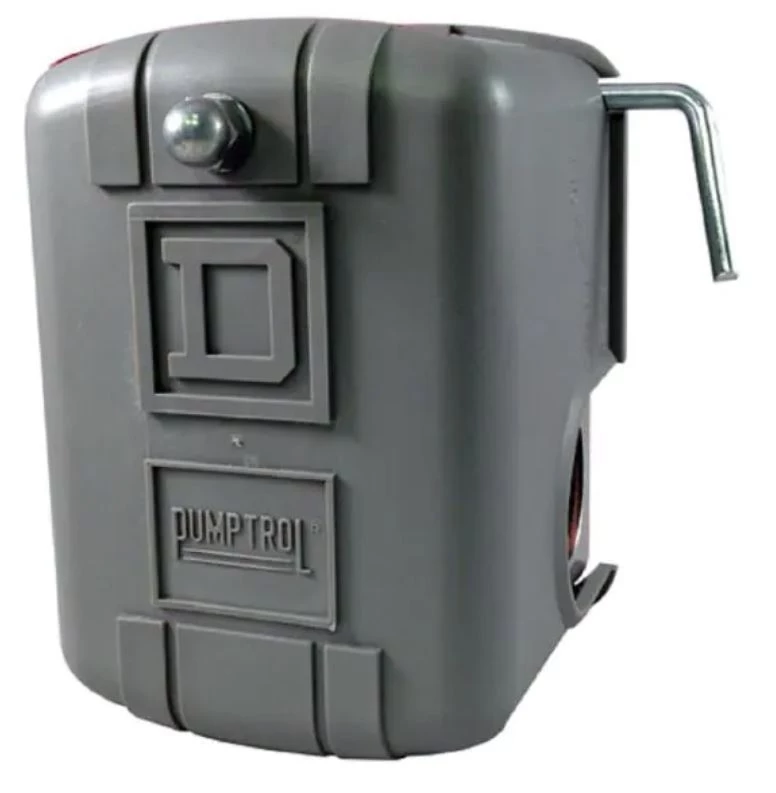

Square D Pumptrol 40-60 psi Well Pump Water Pressure Switch w/Low Pressure Cut-Off

The Pumptrol FSG2J24M4CP electromechanical pressure switch by Square D is the most trusted brand in residential, commercial and industrial pumping applications. This switch has a 40 psi to 60 psi pressure setting range activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached. The NEMA 1 enclosure has a 1/4 in. NPSF internal fluid connection and screw clamp terminals. The switch works with a 1.5 HP or less pump. The adjustable differential range is 15 psi to 30 psi and the cut-out range is 20 psi to 65 psi. The low-pressure cut-off (auto-start-off) operates at approximately 10 psi below the cut-in and will turn off the pump. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratory (UL) Listed and Canadian Standards Association (CSA) Certified. for over 75 years, Square D pressure switches continue to meet the needs of our customers. Square D Pumptrol pressure switches are manufactured by Schneider Electric.

Features

If system pressure is lost for any reason, a low water condition for example, the automatic lower pressure/water cut-off feature will open the contacts, turning off the pump
Universally accepted and recognized design is easy to wire, features drift proof cut-in and cut-out settings and has visible vertical contacts which are easy to inspect
Switch is UL Listed and CSA certified
Activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached
Pressure switch is RoHS compliant, NSF certified to meet federal low lead requirements
