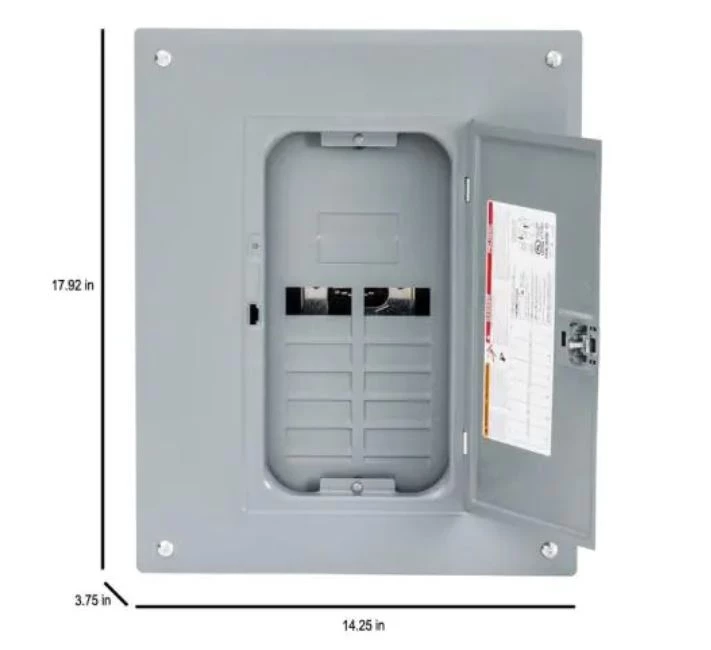

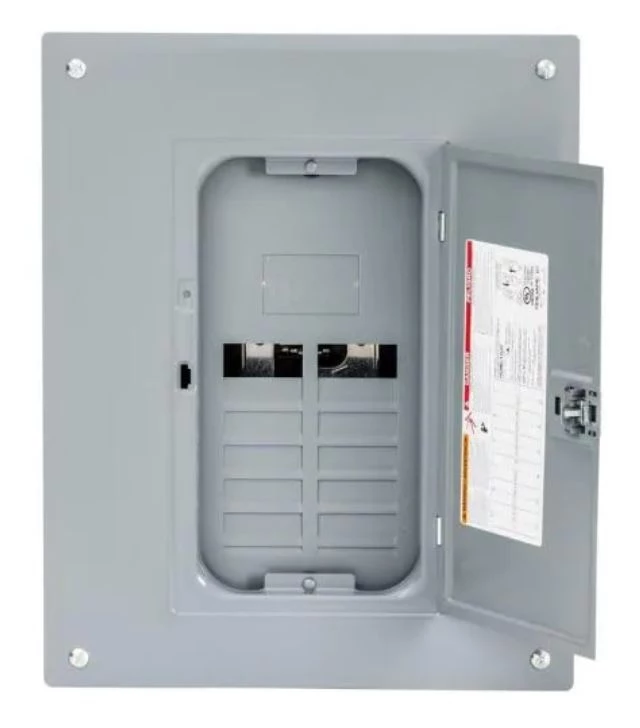

Square D Homeline 125 Amp 8-Space 16-Circuit Indoor Main Lug Plug-On Neutral Load Center w/Cover

The Square D Homeline 125 Amp 8-Space 16-Circuit Indoor Convertible Main Lugs Load Center with cover for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.

Features

Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
Each pole space accepts full-size, tandem or quad breakers
Ground and neutral bars accept up to (3) #10-14 equipment grounds
Includes a combination flush/surface mount cover and is convertible to a main breaker load center with a QOM1 main breaker
Accommodates plug-on secondary surge arrestor (sold separately)
Overhead/underground feed simply by rotating the device before installing
Single phase
Rated 120/240 VAC and 10,000 AIR short circuit current rating
Automatic flush adjusting cover requires less time to complete the job
Designed with straight-in mains to save expensive cable and time
Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
Thermoplastic interior assembly is among the most rugged in the industry
Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
Made in the USA
