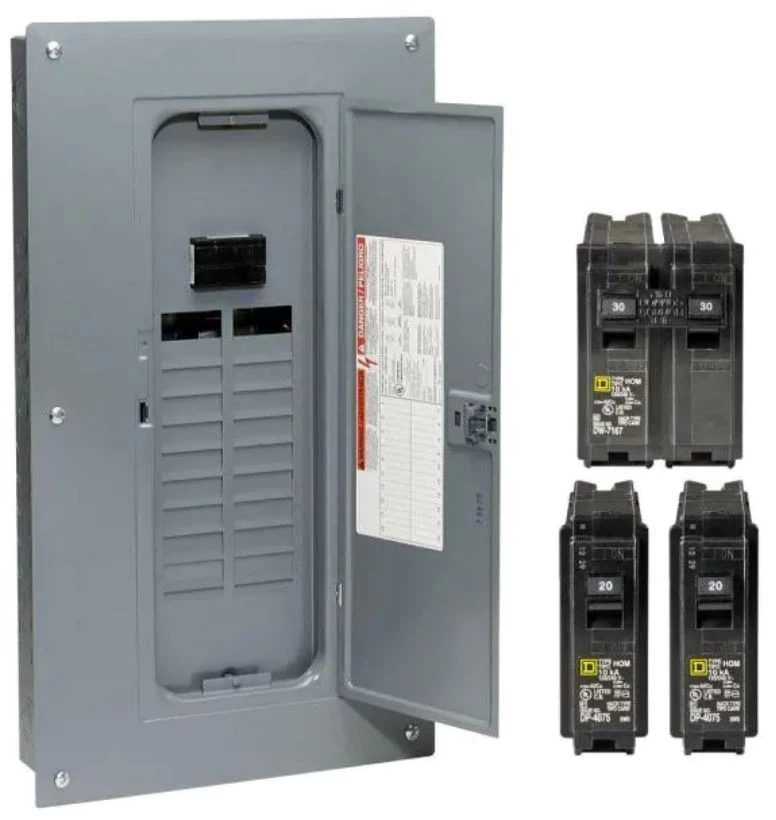

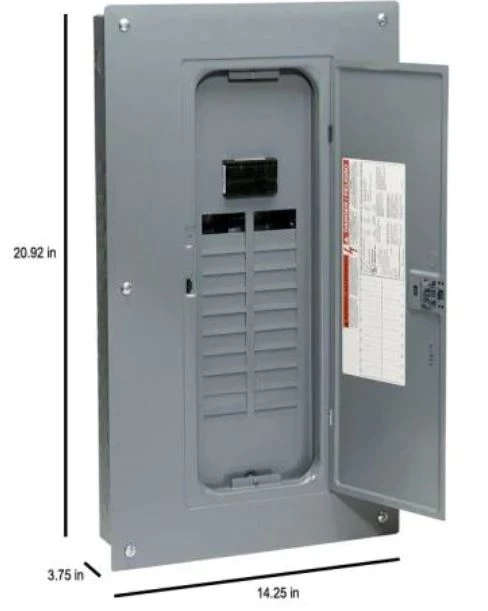

Square D Homeline 100 Amp 20-Space 40-Circuit Indoor Main Breaker Qwik-Grip Plug-On Neutral Load Center w/Cover – Value Pack

The Square D by Schneider Electric Homeline Value Pack 100 Amp 20-Space 40-Circuit Indoor Convertible Main Breaker Qwik-Grip Load Center for Plug-on Neutral breakers includes the cover, a selection of breakers and is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Square D Homeline breaker boxes are engineered for fast installation and wire savings.

Features

Square D Homeline 100 Amp 20-Space 40-Circuit Indoor Main Breaker Qwik-Grip Plug-On Neutral Load Center with Cover – Value Pack
Innovative cable entry system quickly grips the branch wires while eliminating steel KO’s and cable connectors for a faster installation
Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
Each pole space accepts full-size, tandem or quad breakers
Ground and neutral bars accept up to (3) #10-14 equipment grounds
Includes (2) HOM120 Homeline 20 Amp single-pole circuit breakers, (1) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
Accommodates plug-on secondary surge arrestor (sold separately)
Overhead/underground feed simply by rotating the device before installing
Single phase, for indoor installation
Rated 120/240 VAC and 22,000 air short circuit current rating
Automatic flush adjusting cover requires less time to complete the job
Designed with straight-in mains to save expensive cable and time
Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
Thermoplastic interior assembly is among the most rugged in the industry
Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
