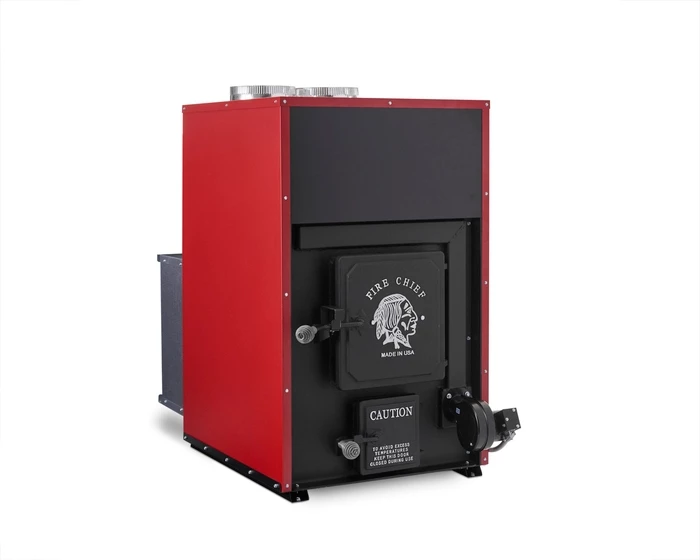

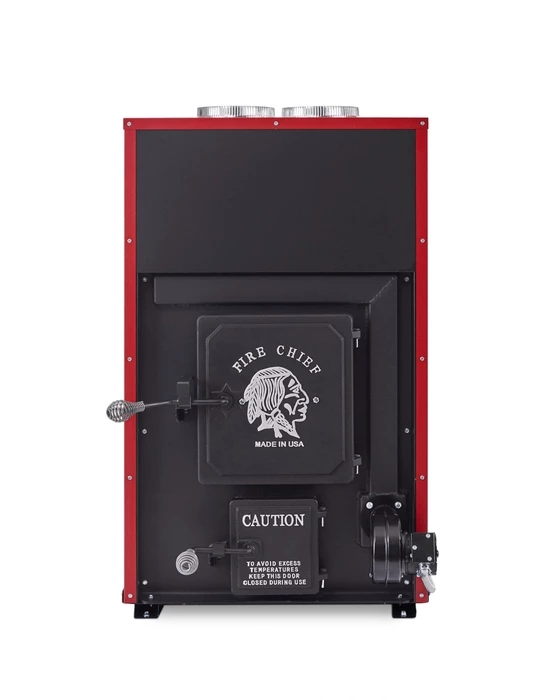

Fire Chief 2020 EPA Certified Wood Burning Indoor Furnace

Fire Chief. Burns Longer. Burns Hotter. Burns Cleaner.

Features

•   2020 EPA Certified

•   Whole-Home Heating Solution

•   3.4 cu. ft. Firebox, Up to 20” Logs

•   Recommended Heating Area: 1,000 – 2,000 sq. ft.

•   Maximum Peak Input¹: 290,000 BTU

•   Maximum Peak Output²: 198,000 BTU

•   Average Output Capacity³: 60,000 BTU

•   Extended Burn Time [Up to 9 Hours] with Clean Burn Technology

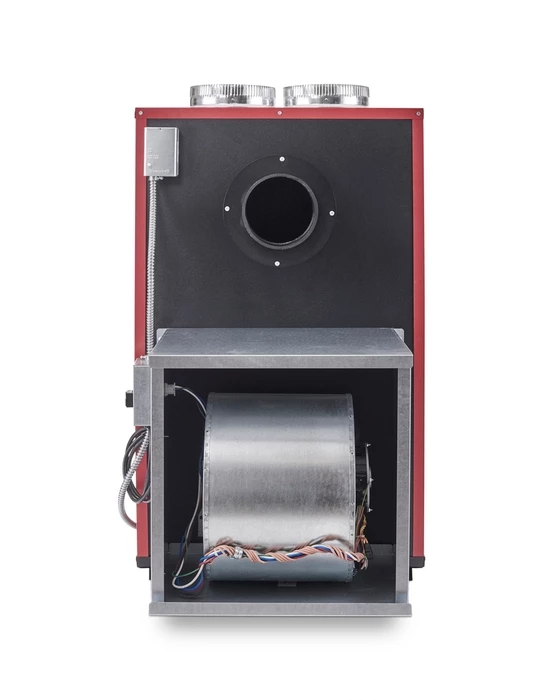

•   High Capacity Distribution Blower

•   Fixed Cast Iron Grate

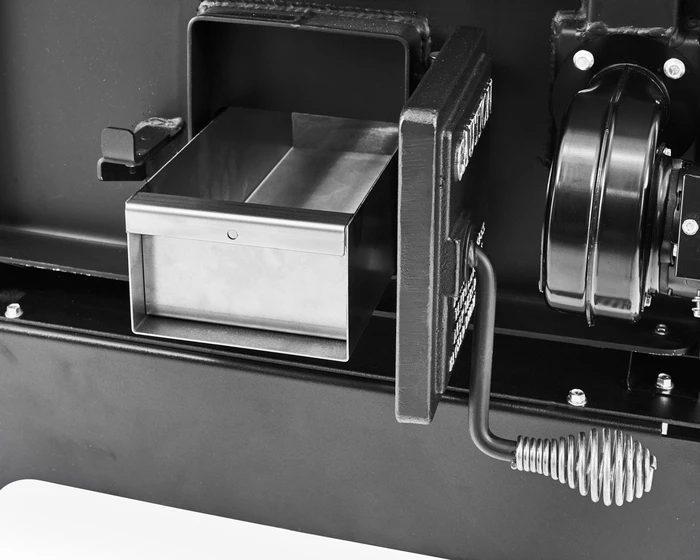

•   Easy Access Ash Pan

•   Overall Installed Dimensions: W: 26” D: 45 ½” H: 42”

•   Weight: 435lbs

•   Digital Thermostat with Draft Inducer

•   Pre-Wired Electrical Components

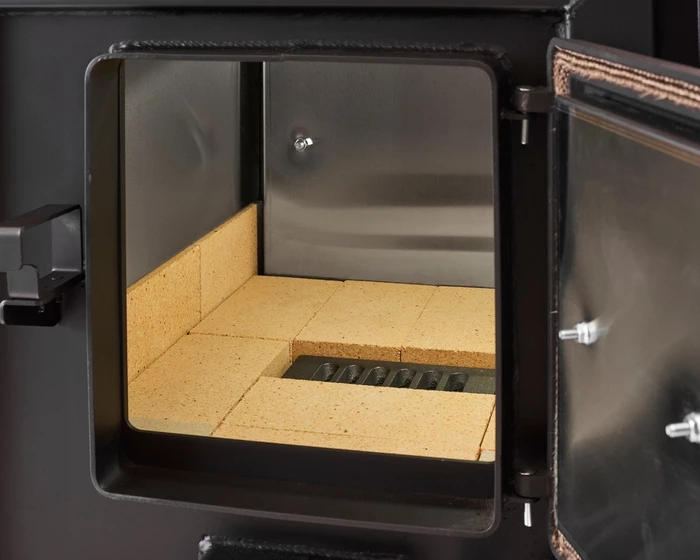

•   Stainless Steel Lined Firebox

•   Tested Emissions: 0.11 lbs./Million BTU

•   Low Clearance to Combustibles: Side: 6” Back: 12”

•   Requires 6” Chimney

•   Manufacture Limited Lifetime Warranty (Firebox & Grates)

•   Manufacture 2-Year Blower Warranty

•   Manufacture 1-Year Electrical Components Warranty

•   Installation DVD Included

•   Made in the USA

¹Based upon 10lbs. per CF firebox capacity and 8,500 BTU per lb. of wood.

²Based upon tested efficiency at Maximum Peak Input. BTU output cycles dependent upon the amount, frequency, and quality of wood. It is not a continuous, steady output.

³Estimated based upon high burn rates and achieved burn times.
