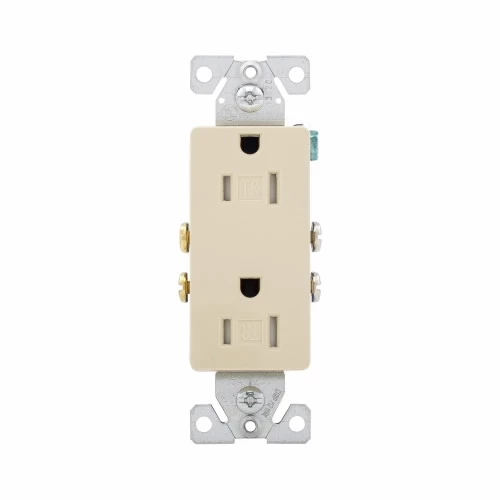

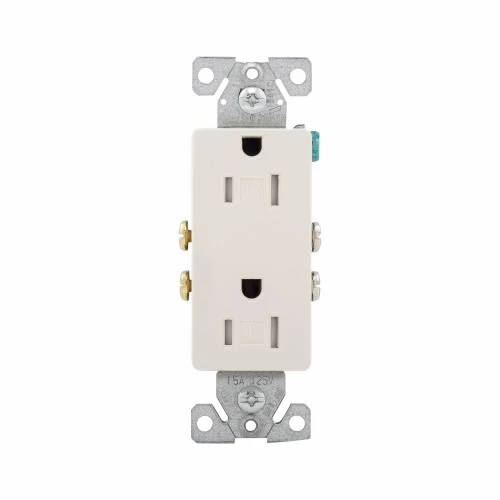

Eaton Residential Grade Decorator Duplex Receptacle

• #14-10 AWG

• 15A

• Commercial|Residential

• Flush

• 125V

• Side and push

• Brass

• Impact-resistant thermoplastic face

• PVC body

• 5-15R

• Duplex

• Screw

• Thermoplastic

• Core pack

• Tamper-resistant



Features

UPC – 032664666421

PRODUCT LENGTH/DEPTH – 1.3 in

PRODUCT HEIGHT – 3.81 in

PRODUCT WIDTH – .69 in

PRODUCT WEIGHT -.13 lb

FACE/BODY MATERIAL – PVC body Impact-resistant thermoplastic face

WIRING METHOD – Side and push

FEATURES – Tamper resistant

MATERIAL – Thermoplastic

MOUNTING METHOD – Flush

ALLOWABLE WIRE SIZE – #14-10 AWG

AMPERAGE RATING – 15 A

NUMBER OF POLES – Two-pole

CONTACT MATERIAL – Brass

TYPE – Decorator duplex receptacle

DEVICE GRADE – Standard grade

NEMA CONFIGURATION – 5-15R

STYLE TYPE – Decorator

DESIGN TYPE – Straight blade

CONNECTION TYPE – Screw

NUMBER OF WIRES – 3

RECEPTACLE TYPE – Duplex

VOLTAGE RATING – 125V

APPLICATION – Commercial/residential

TORQUE RATING – 14 lbf-inch
