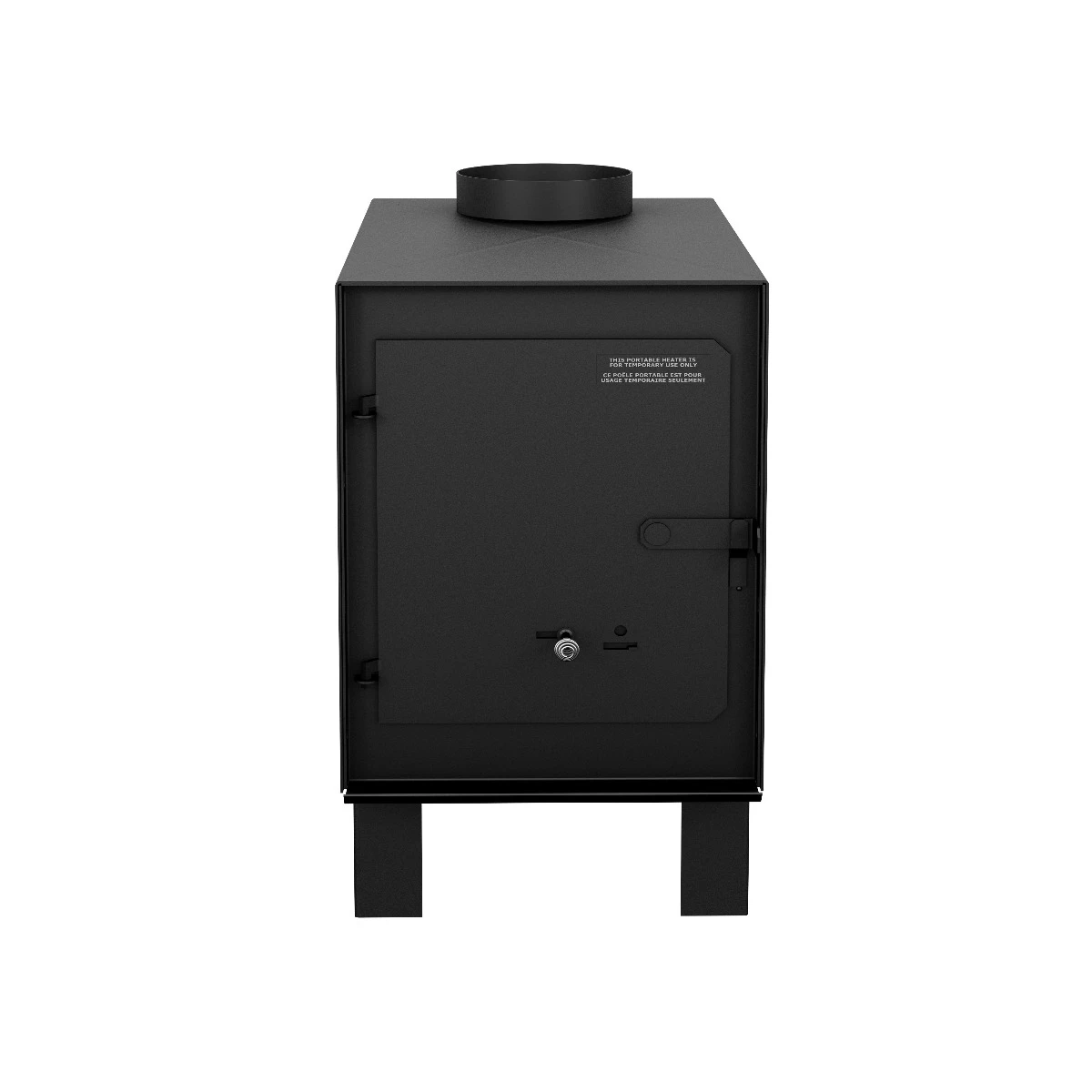

Drolet Hunter Recreational Wood Stove

Features

Fuel type	Dry cordwood	Distance-center of the flue outlet to side unit	6 1/4″
Overall firebox volume	2 ft³	Recommended chimney diameter	6″
Size	Small	Door type	Full steel
Maximum log length	20″	Door opening size (Width)	9 3/8″
Shipping weight	56 lb (25 kg)	Door opening size (Height)	10 7/8″
Overall dimension (Width)	12 5/8″	Firebox size (Width)	12 3/8″
Overall dimension (Height)	23 3/8″	Firebox size (Height)	16 1/8″
Overall dimension (Depth)	22 7/8″	Firebox size (Depth)	19 7/8″
Warranty	Limited 1 year to welds	Log positioning	Loading over depth
Alcove installation approved	No	Baffle type	Steel
Mobile home approved	No	Canadian Standard (safety)	ULC S627
Flue outlet diameter	6″	Steel thickness-body	14 ga
Distance-center of the flue outlet to back unit	3 3/4″	Steel thickness-top	14 ga

*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner’s manual, catalogues, flyers, magazines and/or web sites).

**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

1. Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
2. Optimum overall efficiency at a specific burn rate (LHV).
3. This appliance is officially tested and certified by an independent agency.
4. The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
5. As measured per CSA B415.1-10 stack loss method.
6. Higher Heating Value of the fuel.
7. Lower Heating Value of the fuel.
8. The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
9. Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
10. Carbon monoxyde.
