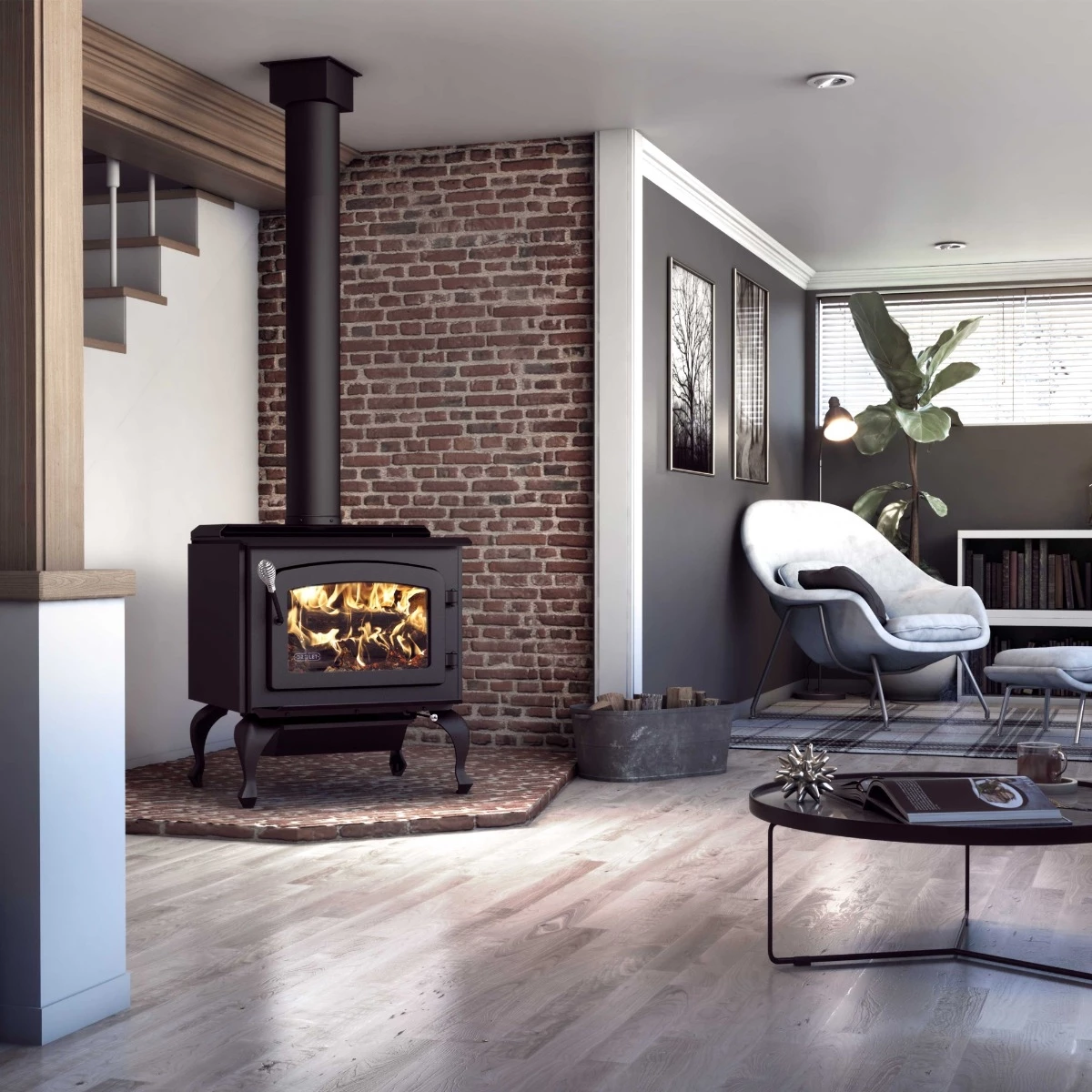

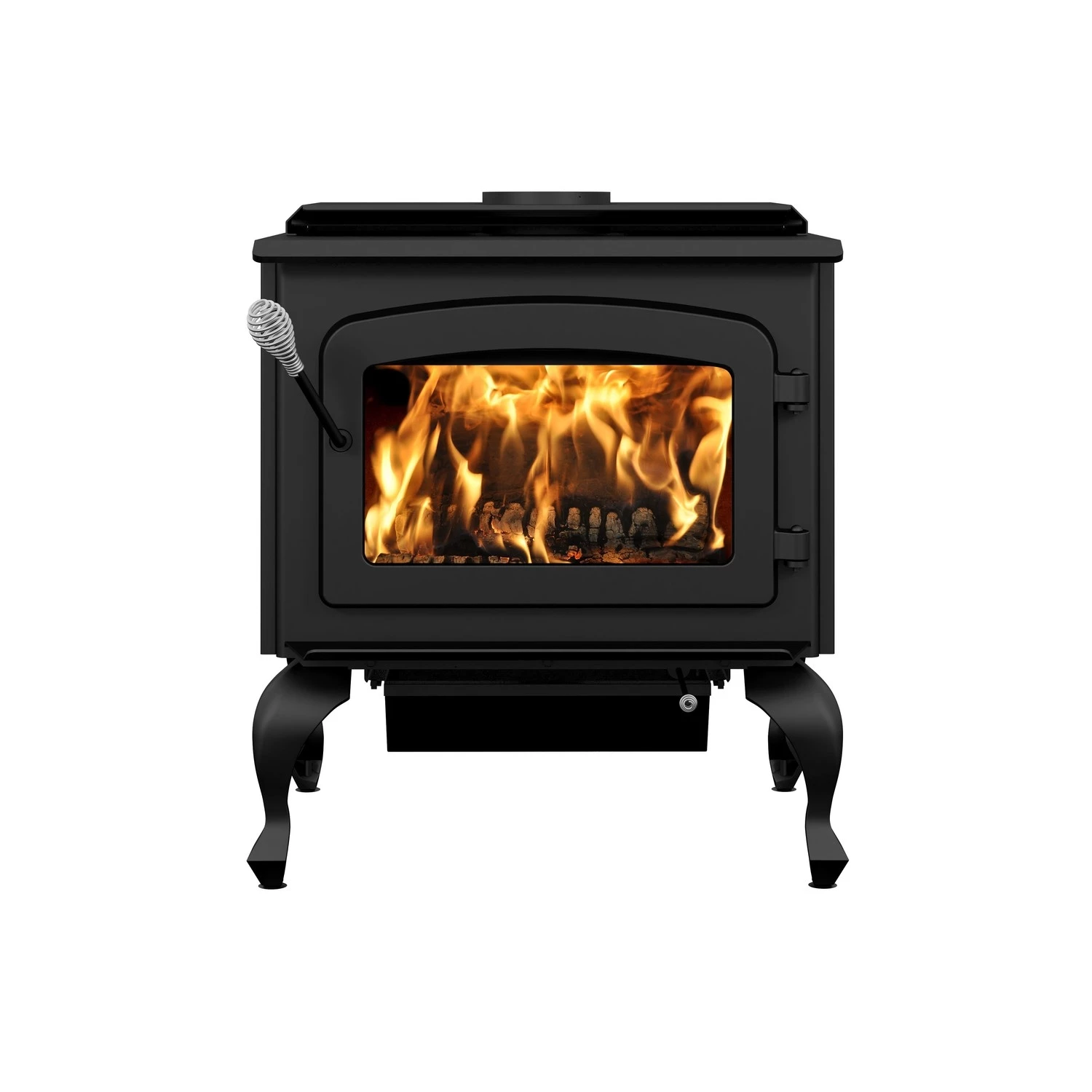

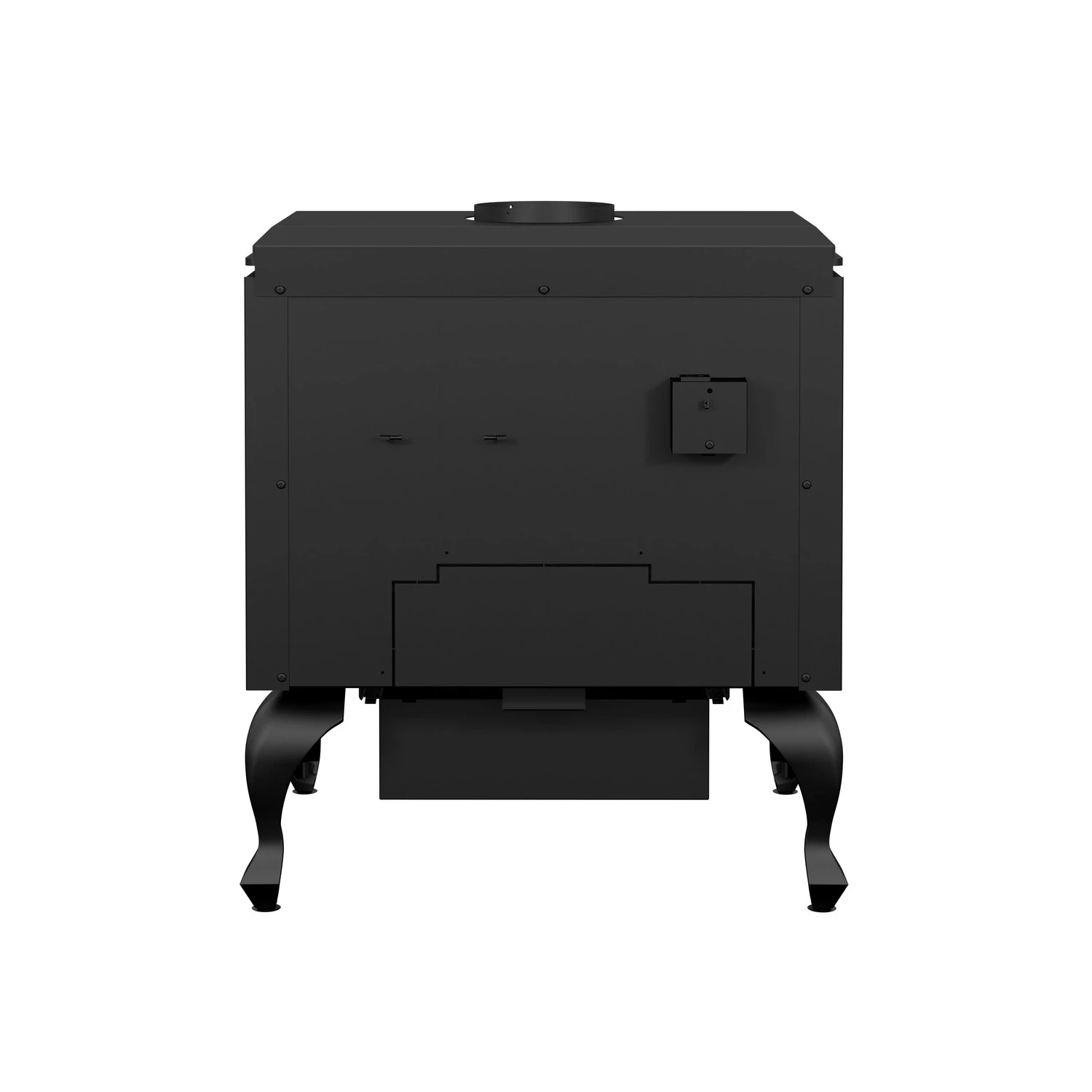

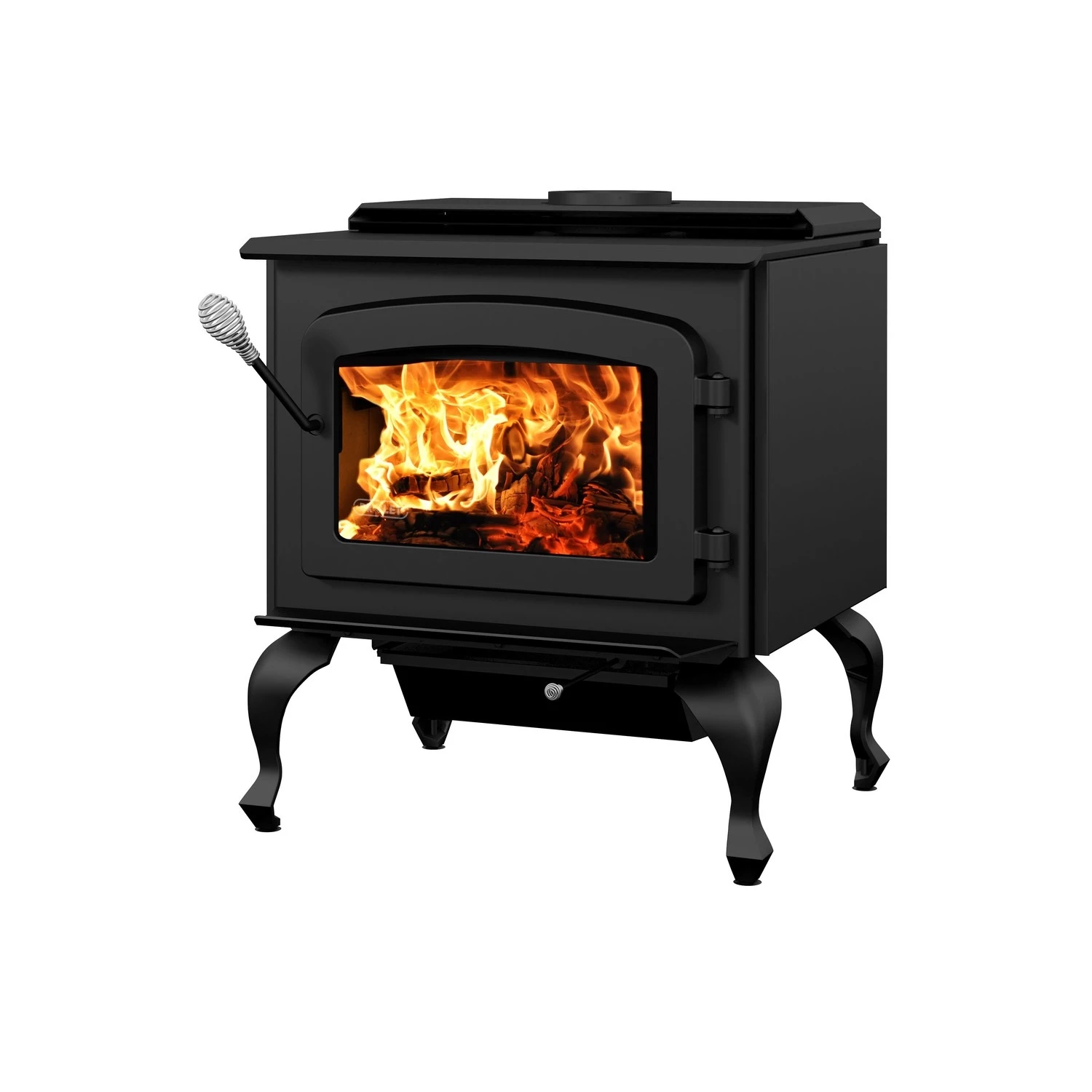

Drolet Escape 1800 Wood Stove on Legs with Black Door

Features

Fuel type	Dry cordwood (16″ recommended)	Stainless-steel secondary-air system	Yes
Recommended heating area(9)	500 – 2,100 ft²	Flue outlet diameter	6″
Overall firebox volume	2.4 ft³	Distance-center of the flue outlet to back unit	6 3/4″
EPA loading volume	2.02 ft³	Distance-center of the flue outlet to side unit	12 7/8″
Maximum burn time(9)	8 h	Recommended chimney diameter	6″
Maximum heat output-dry cordwood(4)	75,000 BTU/h (22 kW)	Type of chimney	CAN/ULC S629, UL 103 HT (2100 °F)
Minimum overall heat output rate(4) (5)	14,800 BTU/h (4.34 kW)	Minimum chimney height	12′
Maximum overall heat output rate(4) (5)	28,600 BTU/h (8.38 kW)	Door type	Single, glass with cast iron frame
Average overall efficiency-dry cordwood (HHV)(5) (6)	69 %	Door opening size (Width)	17 1/2″
Average overall efficiency-dry cordwood (LHV)(5) (7)	74 %	Door opening size (Height)	9″
Optimum efficiency(1) (2)	77 %	Glass type	Ceramic glass
Optimum heat transfer efficiency(8)	75 %	Glass surface – W x H	16″ x 9 1/4″
Average particulate emission rate(3)	1.54 g/h	Firebox size (Width)	21″
Average CO(10)	89.4 g/h	Firebox size (Height)	12″
Size	Large	Firebox size (Depth)	16 1/2″
Maximum log length	20″	Log positioning	Loading over width and over depth
Shipping weight	368 lb (167 kg)	Firebox lined with refractory bricks	Yes
Overall dimension (Width)	26 1/8″	Baffle type	High quality vermiculite
Overall dimension (Height)	30 1/8″	High-efficiency certified appliance	Yes, EPA 2020 approved
Overall dimension (Depth)	25 7/8″	Canadian Standard (emissions)	CSA B415.1-10
Warranty	Limited lifetime	USA Standard (emissions)	EPA / ASTM WK47329
Alcove installation approved	Yes	Canadian Standard (safety)	ULC S627
Mobile home approved	Yes, with fresh air intake	USA Standard (safety)	UL 1482, UL 737
Premium quality blower included (CFM)	Optional	Steel thickness-body	3/16″
Certified according to applicable standards	By an accredited laboratory (CAN/USA)	Steel thickness-top	5/16″
Combustion technology	Non-catalytic

*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner’s manual, catalogues, flyers, magazines and/or web sites).

**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

1. Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
2. Optimum overall efficiency at a specific burn rate (LHV).
3. This appliance is officially tested and certified by an independent agency.
4. The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
5. As measured per CSA B415.1-10 stack loss method.
6. Higher Heating Value of the fuel.
7. Lower Heating Value of the fuel.
8. The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
9. Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
10. Carbon monoxyde.
