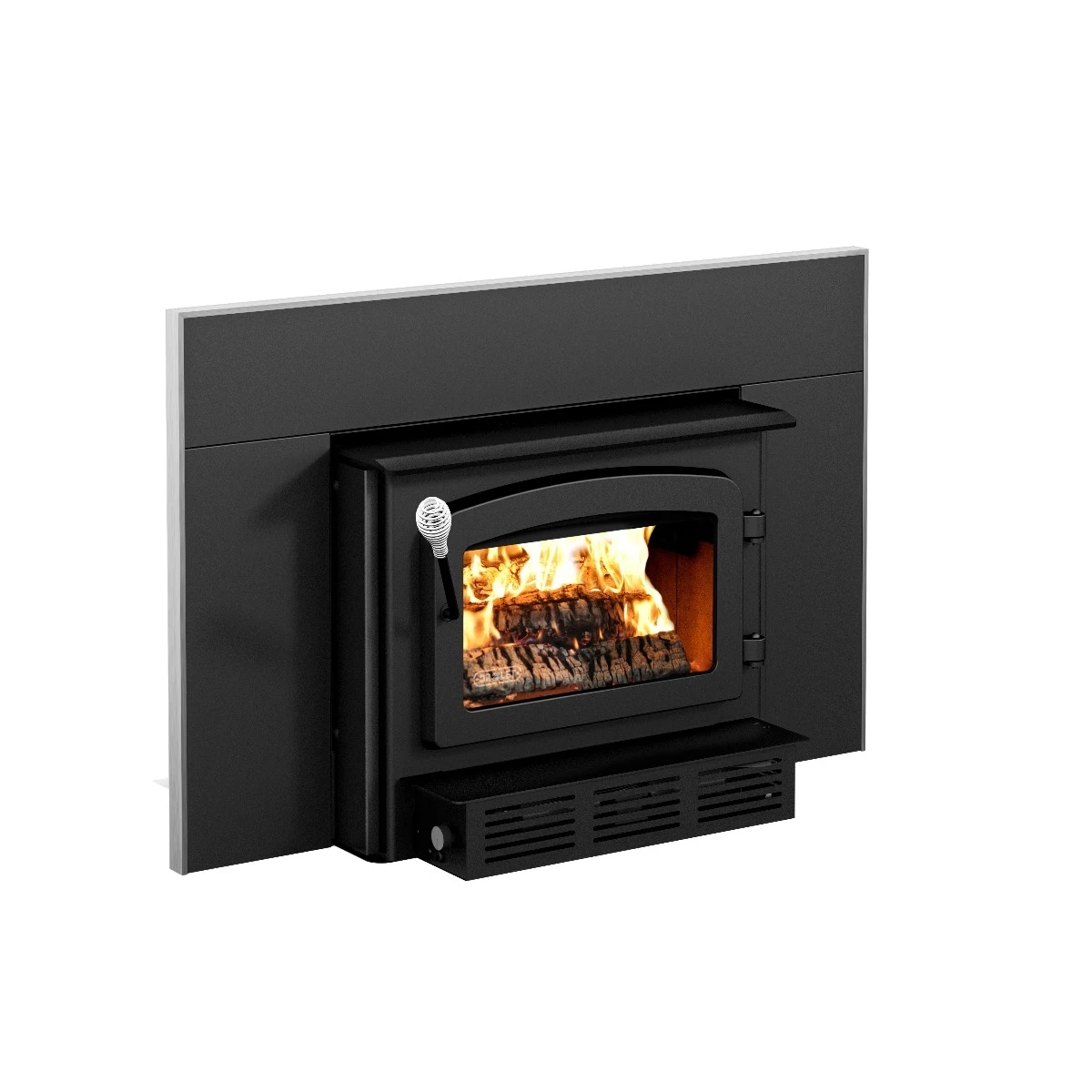

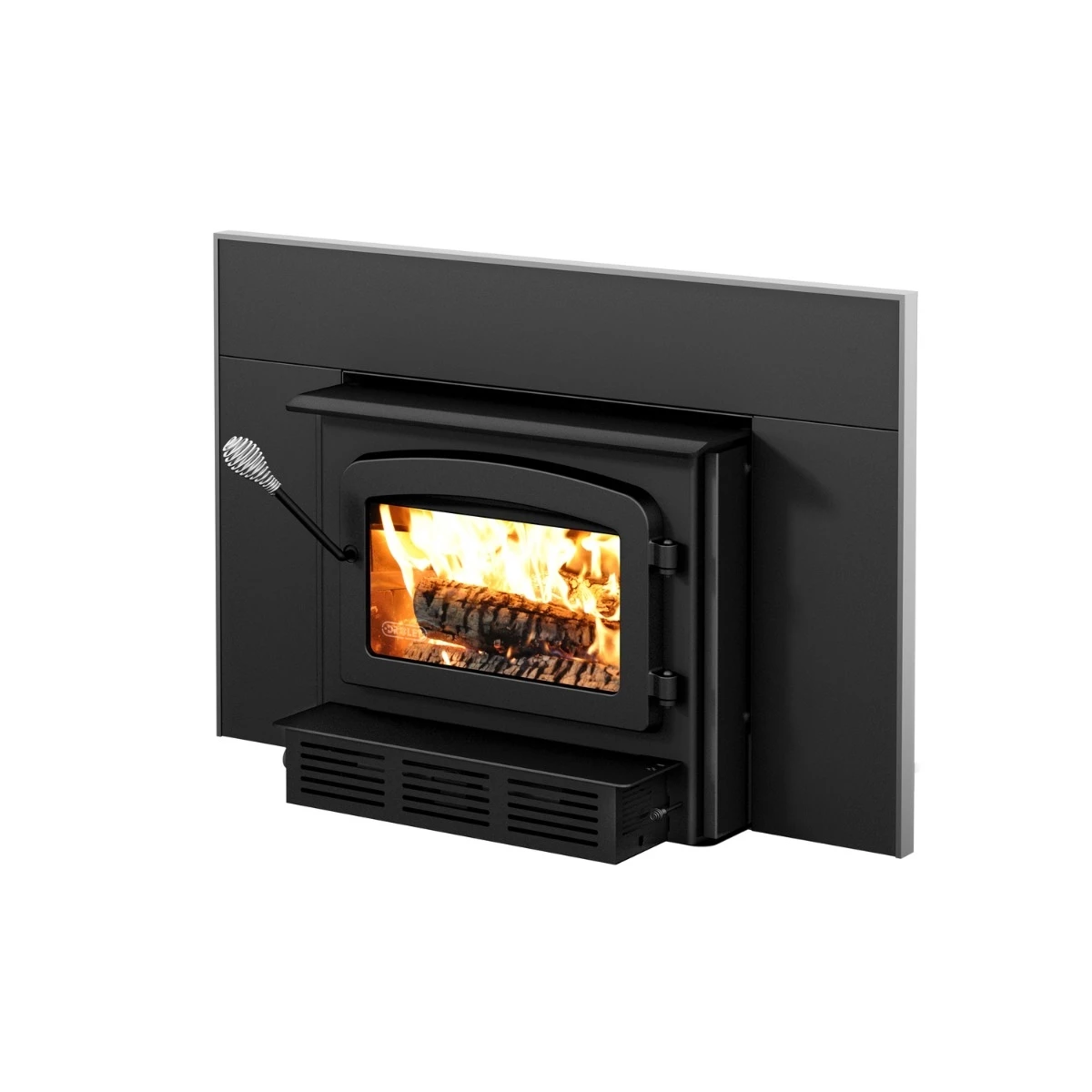

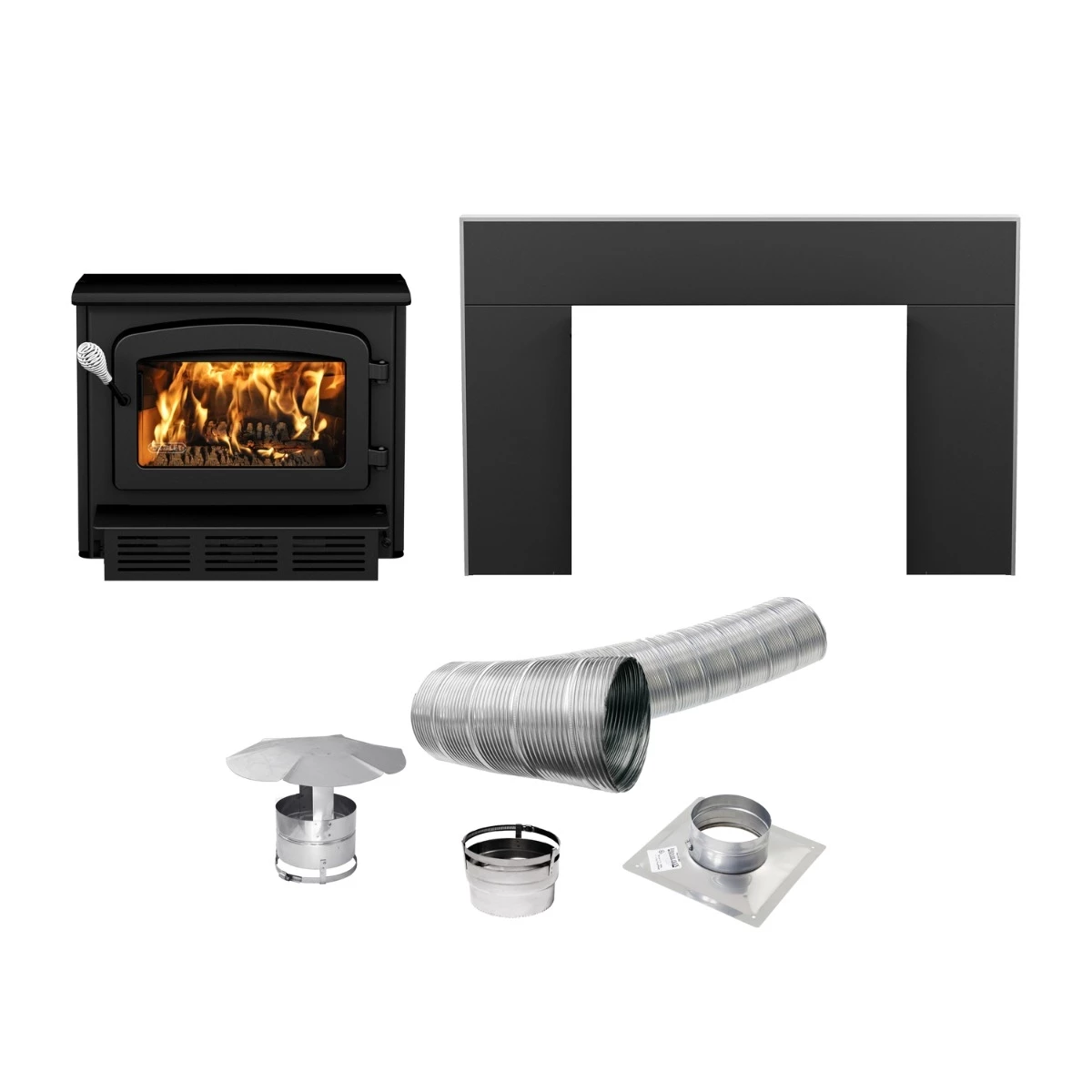

Drolet Escape 1800-I Wood Insert Trio (25ft.)

Features

Optimum efficiency(1) (2)	77 %	Overall dimension (Width)	28 3/8″
Average particulate emission rate(3)	1.54 g/h	Overall dimension (Depth)	26 3/8″
EPA loading volume	2.02 ft³	Door opening size (Height)	9″
Maximum heat output-dry cordwood(4)	75,000 BTU/h (22.0 kW)	Door opening size (Width)	17 1/2″
Maximum overall heat output rate(4) (5)	28,600 BTU/h (8.38 kW)	Distance-center of the flue outlet to side unit	13 1/2″
Minimum overall heat output rate(4) (5)	14,800 BTU/h (4.34 kW)	Distance-center of the flue outlet to back unit	6 7/8″
Average overall efficiency-dry cordwood (HHV)(5) (6)	69 %	High-efficiency certified appliance	Yes, EPA 2020 approved
Average overall efficiency-dry cordwood (LHV)(5) (7)	74 %	Steel thickness-body	3/16″
Optimum heat transfer efficiency(8)	75 %	Steel thickness-top	5/16″
Recommended heating area(9)	500 – 2,100 ft²	Warranty	Limited lifetime
Average CO(10)	89.4 g/h	Minimum chimney height	12′
Maximum burn time(9)	8 h	Maximum log length	20″
Fuel type	Dry cordwood (16″ recommended)	Canadian Standard (emissions)	CSA B415.1-10
Overall firebox volume	2.4 ft³	USA Standard (emissions)	EPA / ASTM WK47329
Size	Large	Canadian Standard (safety)	ULC S628
Alcove installation approved	Yes	USA Standard (safety)	UL 1482, UL 737
Firebox lined with refractory bricks	Yes	Minimum fireplace opening (Height)	23 3/8″
Baffle type	High quality vermiculite	Minimum fireplace opening (Width)	28 7/8″
Recommended chimney diameter	6″	Minimum fireplace opening (Depth)	15 3/4″
Flue outlet diameter	6″	Shipping weight	488 lb (221 kg)
Firebox size (Height)	11 7/8″	Log positioning	Loading over width
Firebox size (Width)	21″	Glass surface – W x H	16″ x 9 1/4″
Firebox size (Depth)	16 1/2″	Stainless-steel secondary-air system	Stainless-steel secondary-air system
Overall dimension (Height)	23 1/8″	Combustion technology	Non-catalytic
Certified according to applicable standards	By an accredited laboratory (CAN/USA)	Type of chimney	Liner – ULC-S635, CAN/ULC-S640, UL1777
Door type	Single, glass with cast iron frame	Premium quality blower included (CFM)	144 CFM included
Glass type	Ceramic glass

*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner’s manual, catalogues, flyers, magazines and/or web sites).

**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

1. Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
2. Optimum overall efficiency at a specific burn rate (LHV).
3. This appliance is officially tested and certified by an independent agency.
4. The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
5. As measured per CSA B415.1-10 stack loss method.
6. Higher Heating Value of the fuel.
7. Lower Heating Value of the fuel.
8. The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
9. Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
10. Carbon monoxyde.
