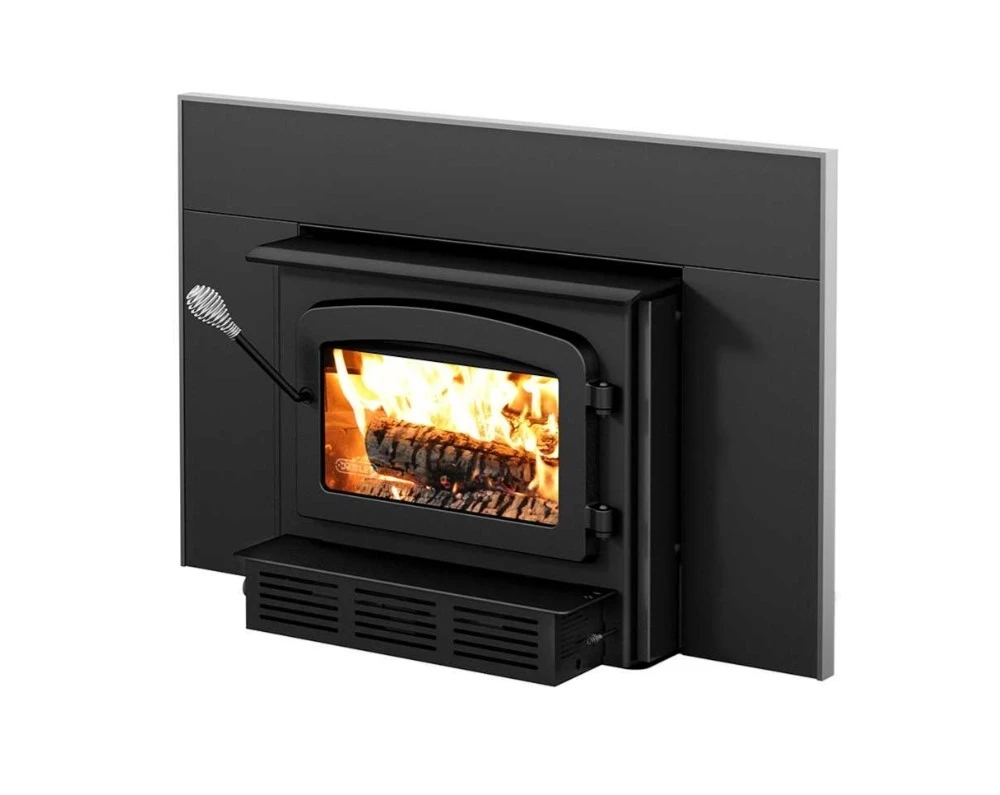

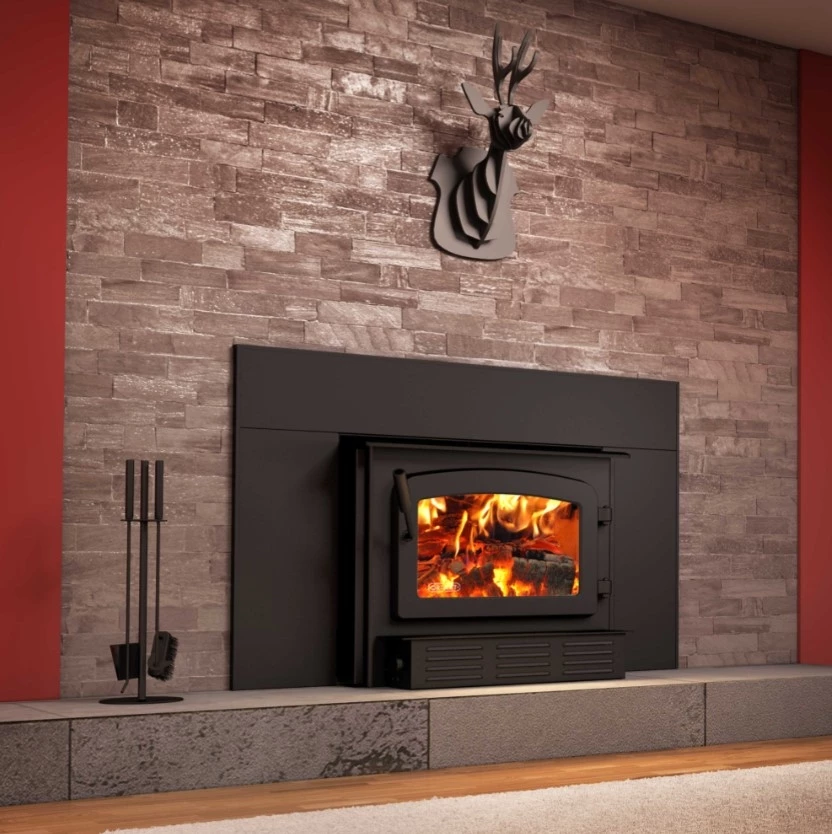

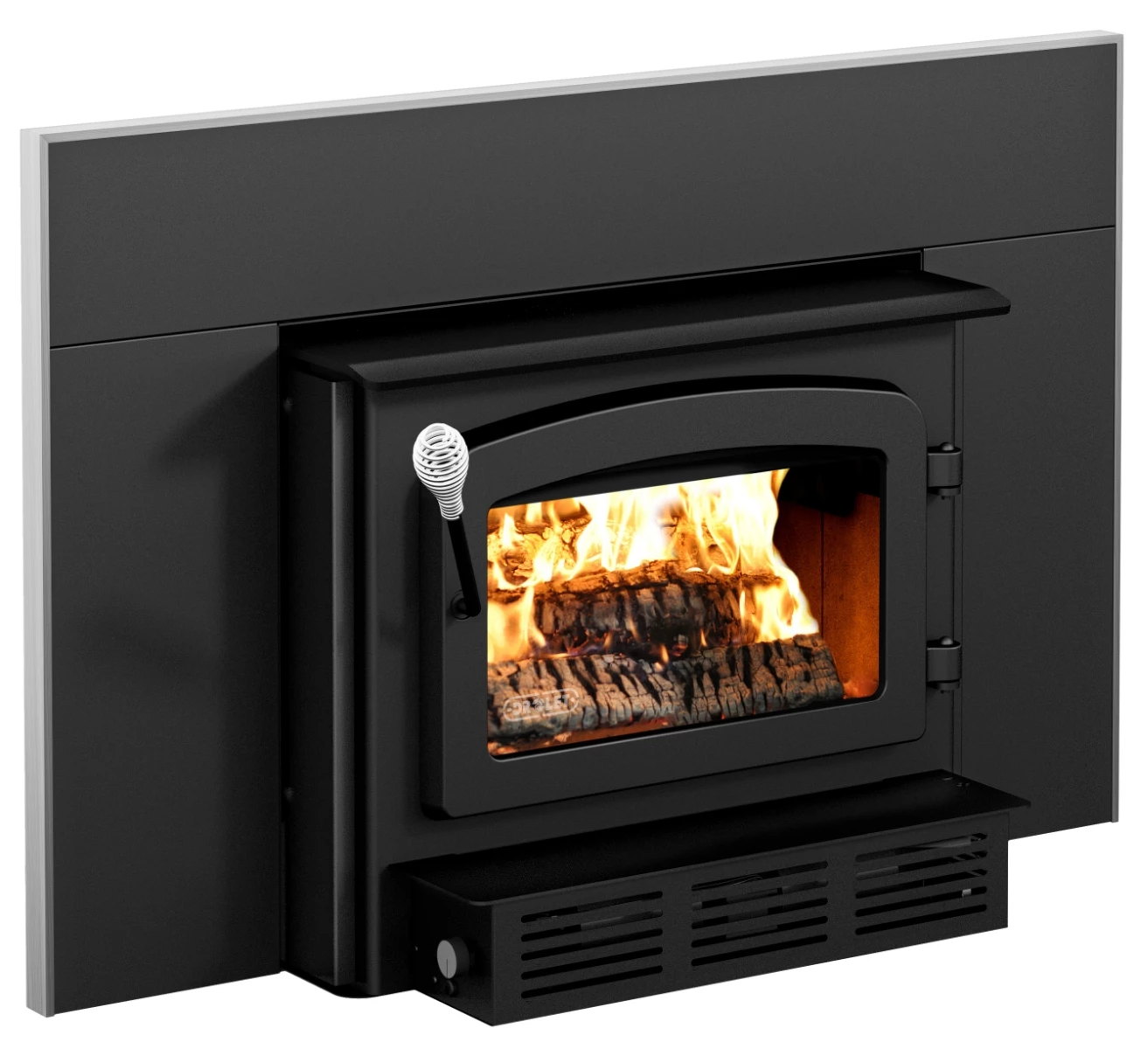

Drolet Escape 1800-I Wood Insert

Features

Optimum efficiency(1) (2)	77 %	Door opening size (Width)	17 1/2″

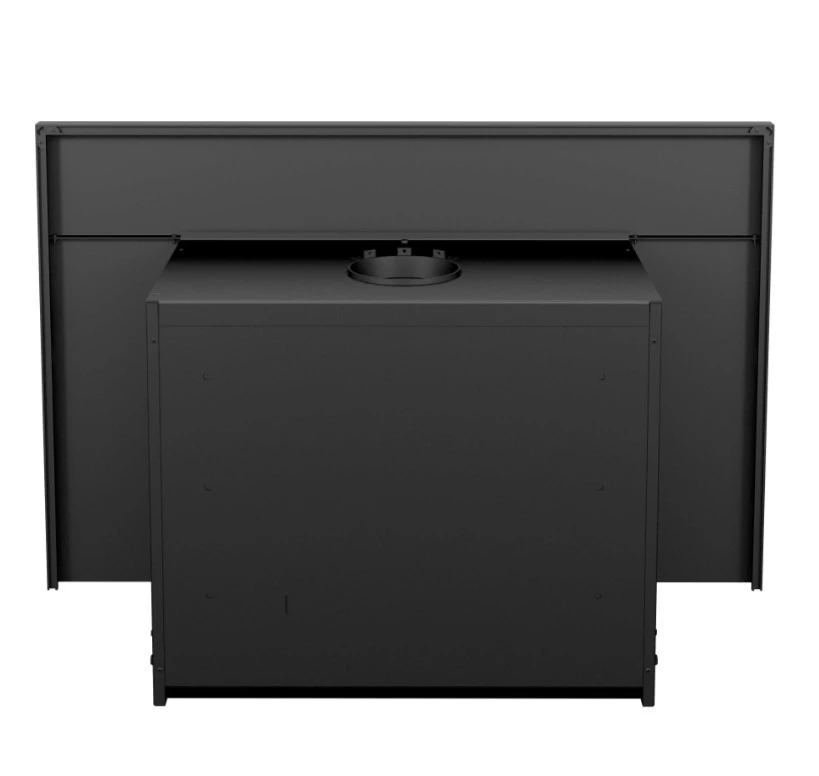

Average particulate emission rate(3)	1.54 g/h	Distance-center of the flue outlet to back unit	6 7/8″
EPA loading volume	2.02 ft³	Distance-center of the flue outlet to side unit	13 1/2″
Maximum heat output-dry cordwood(4)	75,000 BTU/h (22.0 kW)	High-efficiency certified appliance	Yes, EPA 2020 approved
Maximum overall heat output rate(4) (5)	28,600 BTU/h (8.38 kW)	Steel thickness-body	3/16″
Minimum overall heat output rate(4) (5)	14,800 BTU/h (4.34 kW)	Steel thickness-top	5/16″
Average overall efficiency-dry cordwood (HHV)(5) (6)	69 %	Warranty	Limited lifetime
Average overall efficiency-dry cordwood (LHV)(5) (7)	74 %	Minimum chimney height	12′
Optimum heat transfer efficiency(8)	75 %	Maximum log length	20″
Recommended heating area(9)	500 – 2,100 ft²	Canadian Standard (emissions)	CSA B415.1-10
Average CO(10)	89.4 g/h	USA Standard (emissions)	EPA / ASTM WK47329
Maximum burn time(9)	8 h	Canadian Standard (safety)	ULC S628
Fuel type	Dry cordwood (16″ recommended)	USA Standard (safety)	UL 1482, UL 737
Overall firebox volume	2.4 ft³	Minimum fireplace opening (Height)	23 3/8″
Size	Large	Minimum fireplace opening (Width)	28 7/8″
Firebox lined with refractory bricks	Yes	Minimum fireplace opening (Depth)	15 3/4″
Baffle type	High quality vermiculite	Shipping weight	405 lb (178 kg)
Recommended chimney diameter	6″	Log positioning	Loading over width

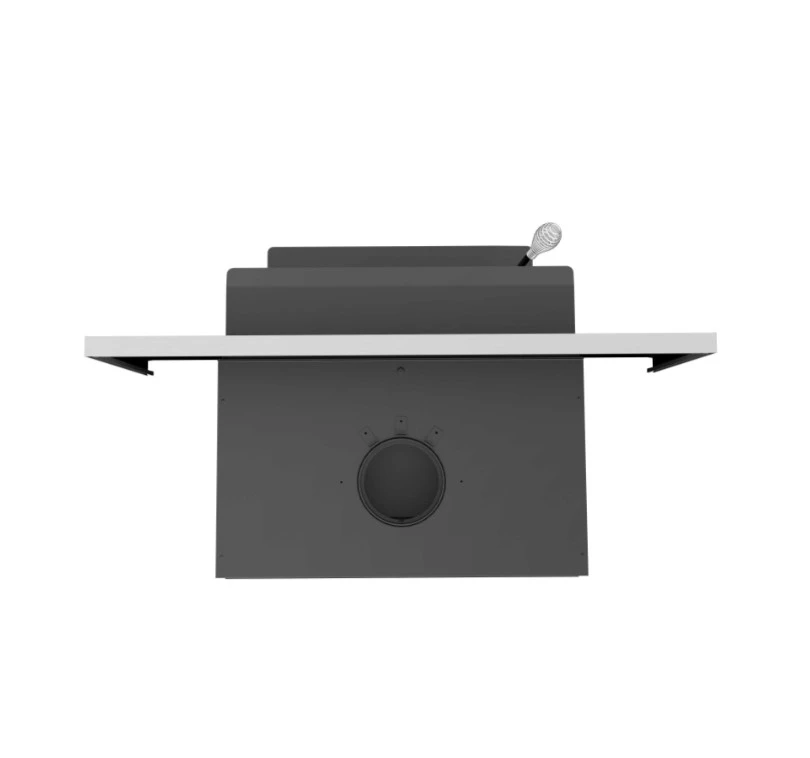

Flue outlet diameter	6″	Glass surface – W x H	16″ x 9 1/4″
Firebox size (Height)	11 7/8″	Stainless-steel secondary-air system	Yes
Firebox size (Width)	21″	Combustion technology	Non-catalytic
Firebox size (Depth)	16 1/2″	Certified according to applicable standards	By an accredited laboratory (CAN/USA)
Overall dimension (Height)	23 1/8″	Type of chimney	Liner – ULC-S635, CAN/ULC-S640, UL1777
Overall dimension (Width)	28 3/8″	Door type	Single, glass with cast iron frame
Overall dimension (Depth)	26 3/8″	Premium quality blower included (CFM)	144
Door opening size (Height)	9″	Glass type	Ceramic glass

*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner’s manual, catalogues, flyers, magazines and/or web sites).

**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

1. Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
2. Optimum overall efficiency at a specific burn rate (LHV).
3. This appliance is officially tested and certified by an independent agency.
4. The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
5. As measured per CSA B415.1-10 stack loss method.
6. Higher Heating Value of the fuel.
7. Lower Heating Value of the fuel.
8. The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
9. Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
10. Carbon monoxyde.
