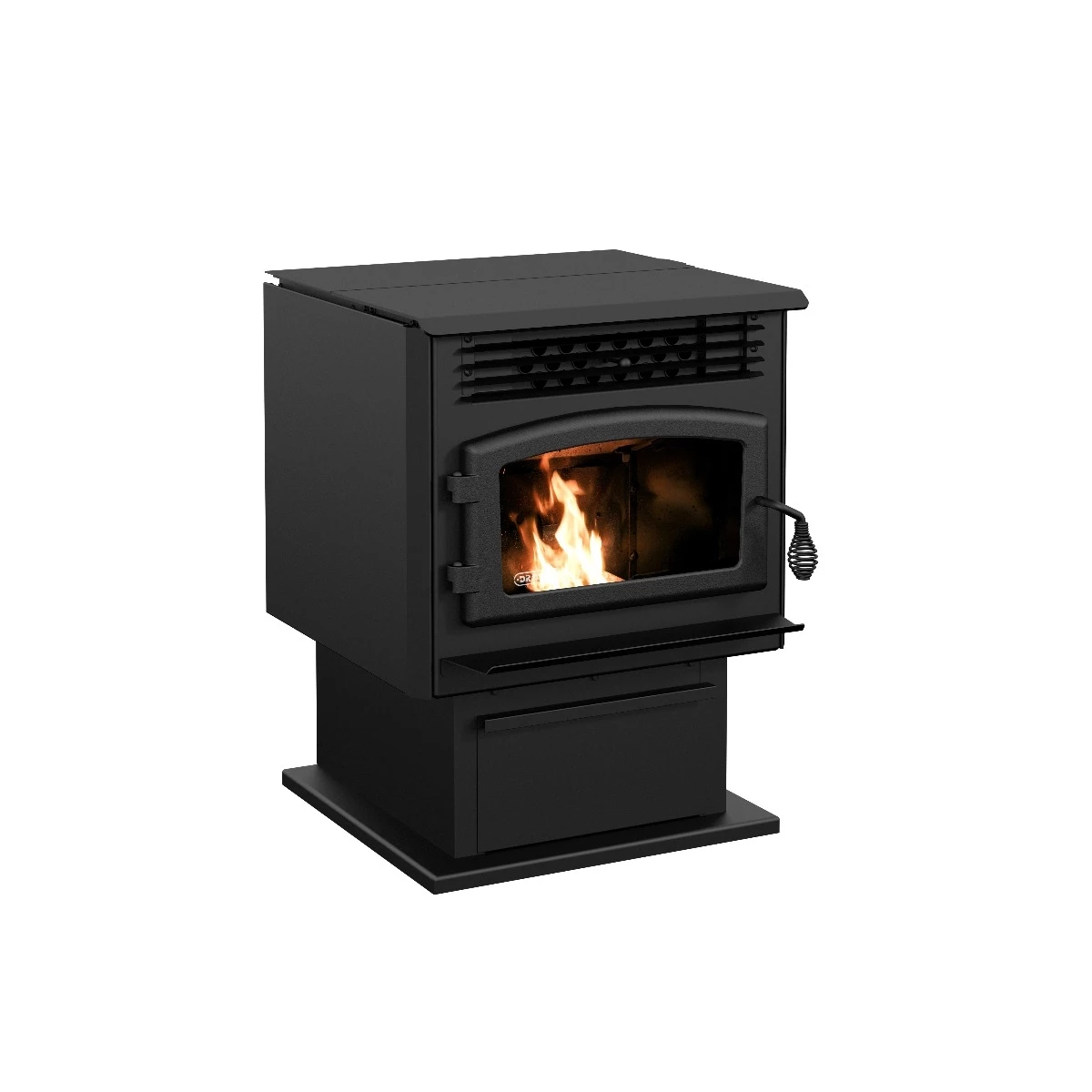

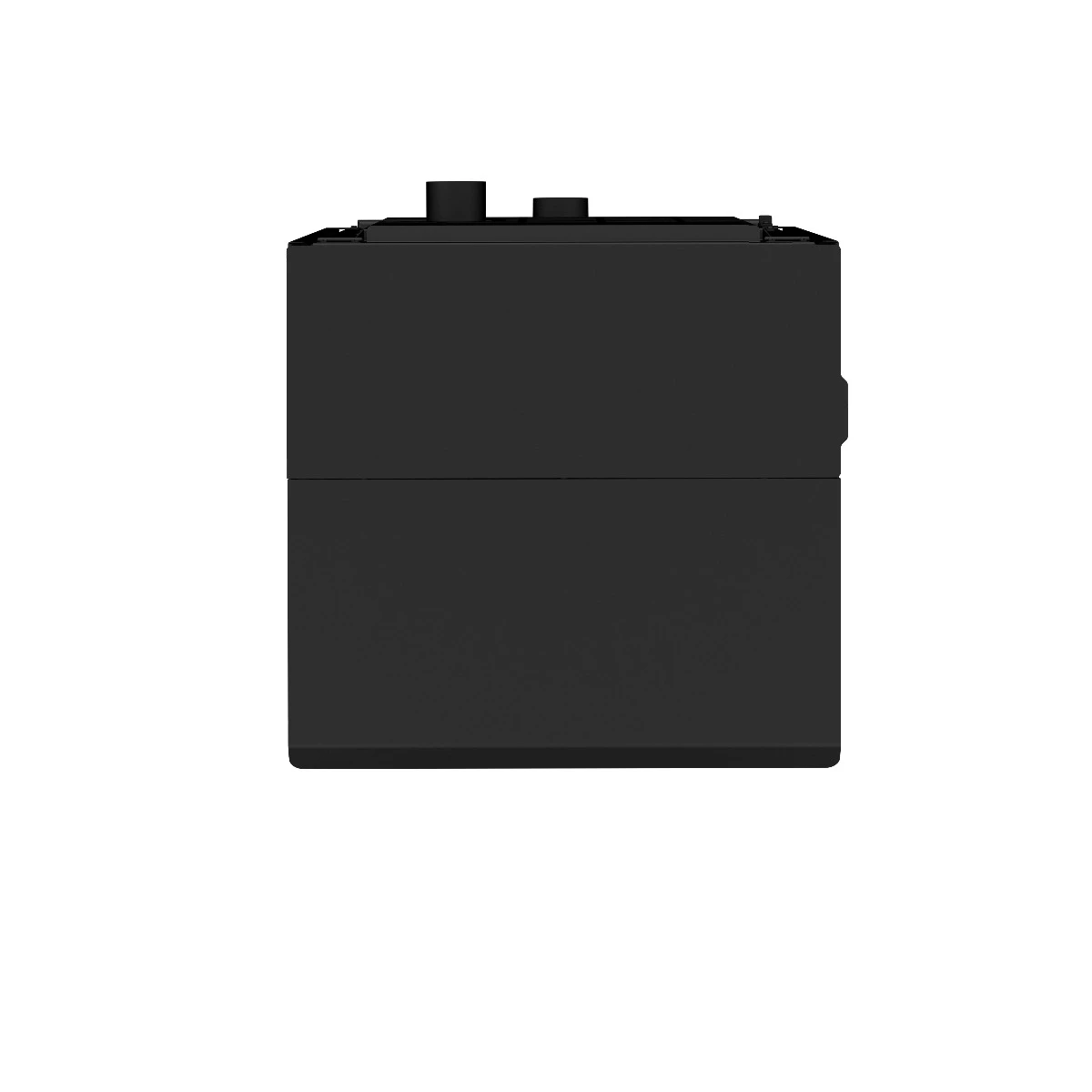

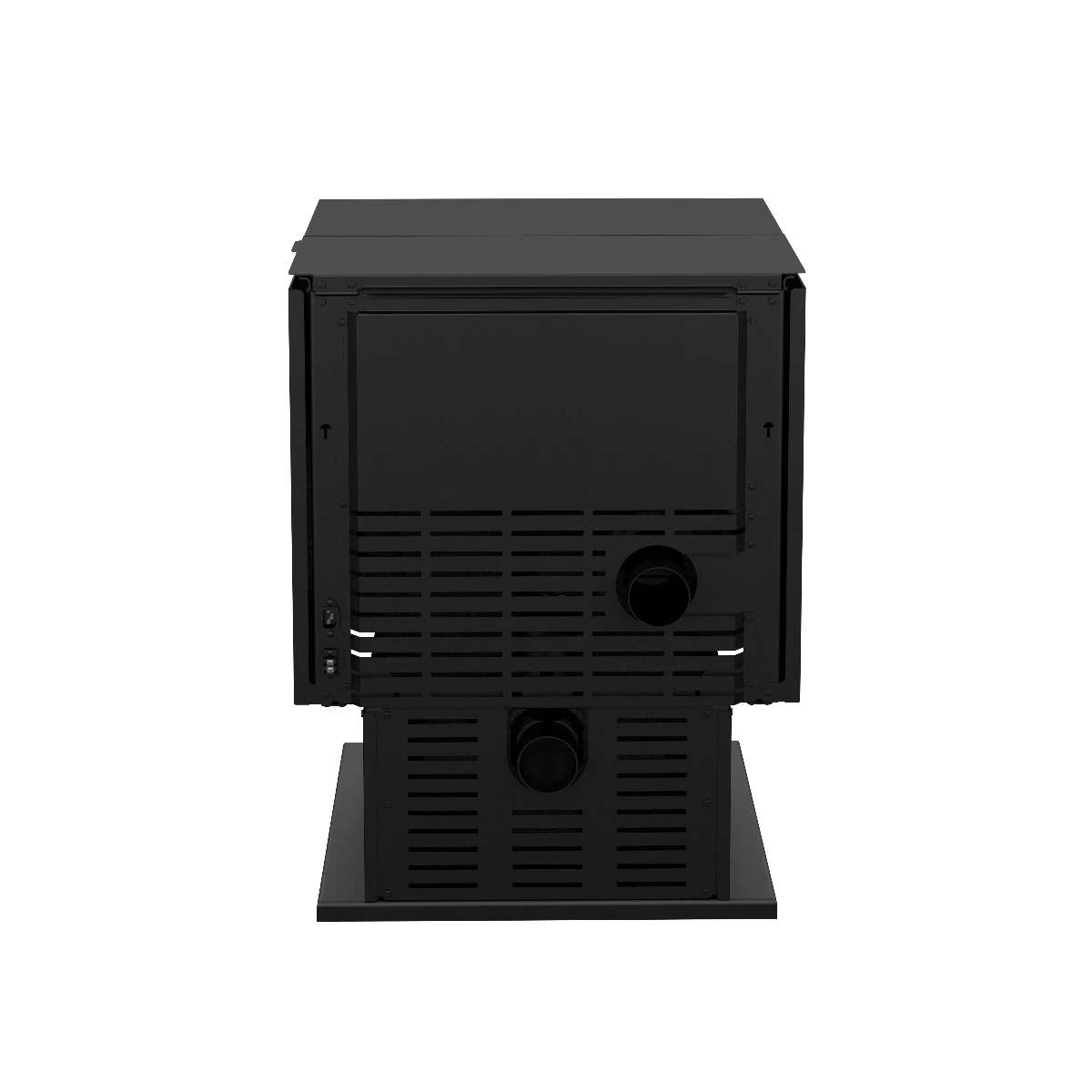

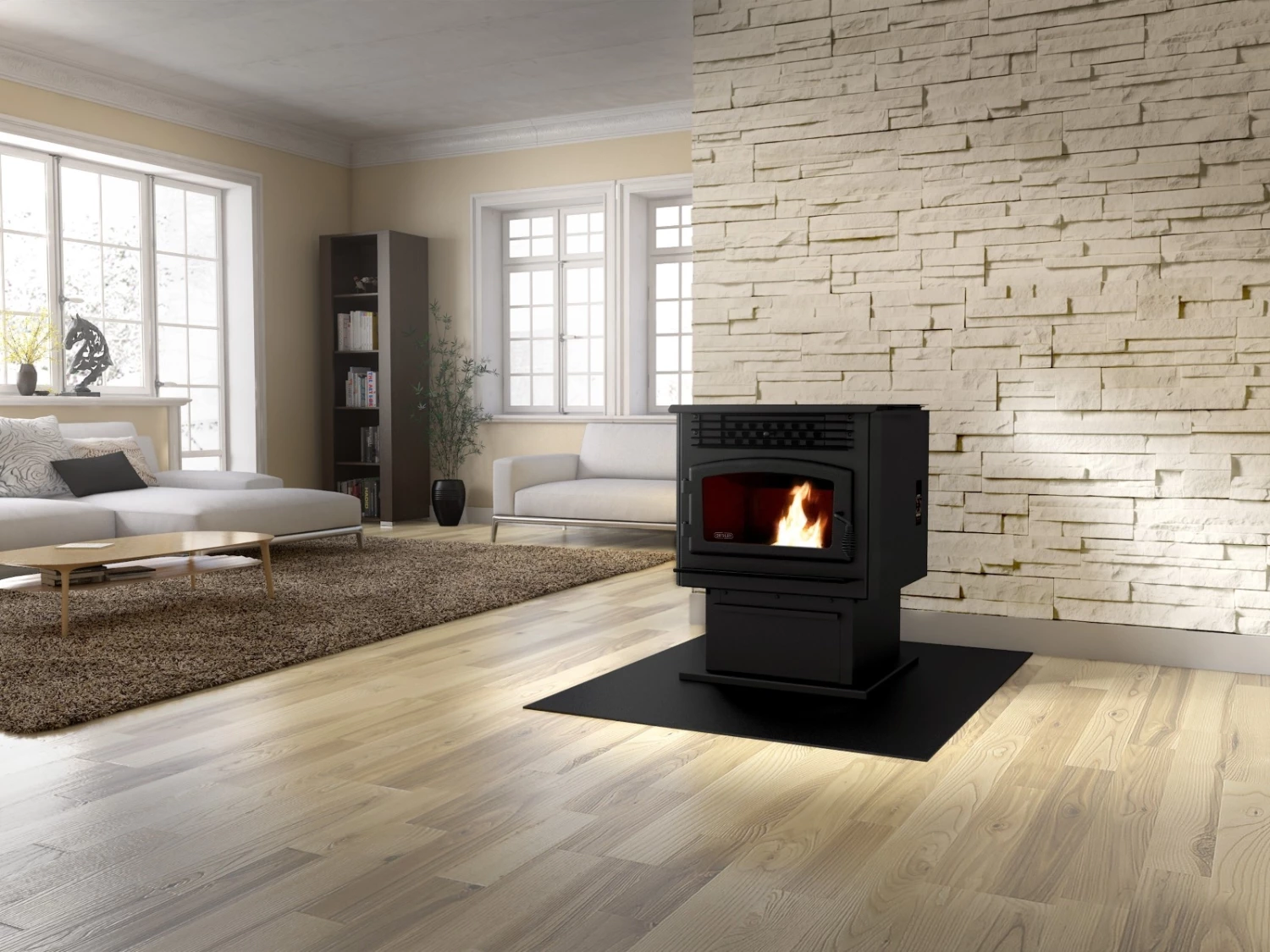

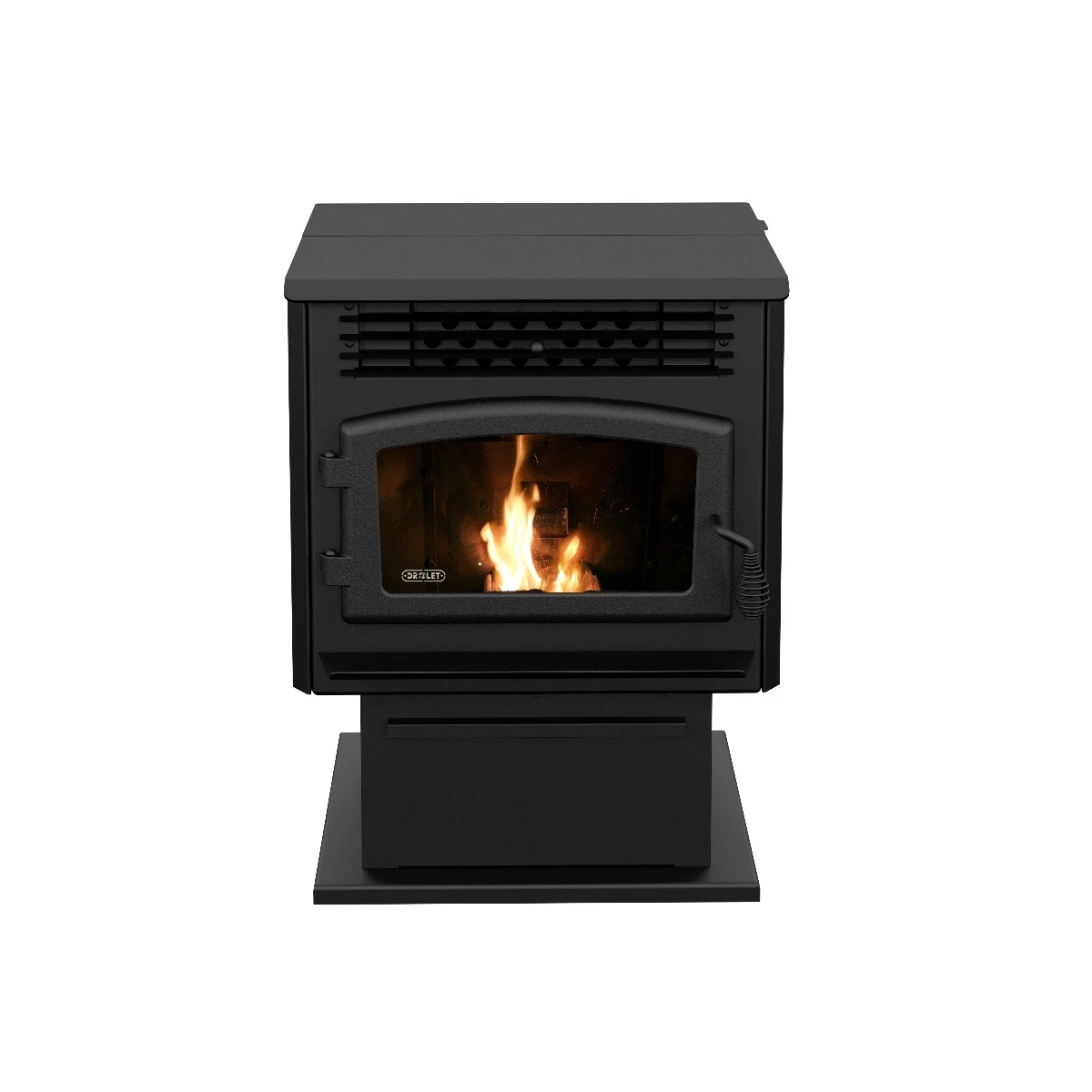

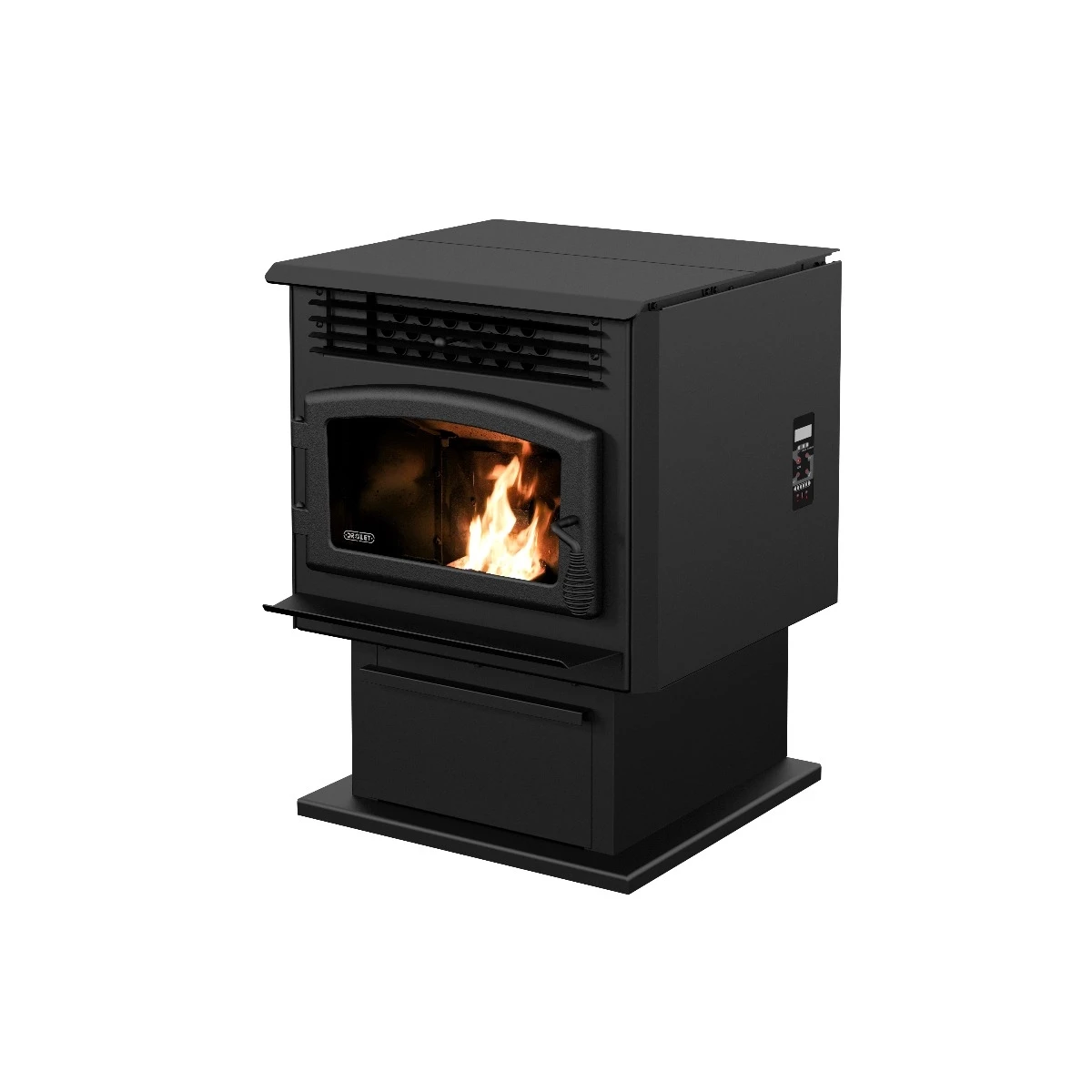

Drolet ECO-55 Pellet Stove

Features

Fuel type	Pellet (Premium grade or better)	Baffle type	Stainless steel
Recommended heating area(9)	500 – 2,000 ft²	Flue outlet diameter	3″
Hopper capacity	60 lb (27 kg)	Recommended chimney diameter	3″ | 4″
Maximum burn time(10)	51 h	Type of chimney	ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L)
Maximum heat input rate	39,260 BTU/h (11.5 kW)	Overall dimension (Width)	25 1/4″
Minimum overall heat output rate(4) (5)	6,648 BTU/h (1.95 kW)	Overall dimension (Height)	32 5/8″
Maximum overall heat output rate(4) (5)	28,540 BTU/h (8.36 kW)	Overall dimension (Depth)	29 1/2″
Minimum average overall efficiency (HHV)(6) (8)	70.3 %	Premium quality blower included (CFM)	176 CFM included
Maximum average overall efficiency (LHV)(6) (7)	75.8 %	Voltage and frequency	120 VAC / 60 Hz
Optimum efficiency(1) (2)	78.4%	Noise level at 6 feet	47 dBa (+/- 3 dBa) – 60 dBa (+/- 3 dBa)
Optimum heat transfer efficiency(8)	73 %	Door type	Single, glass with cast iron frame
Burn rate	1.2 – 4.7 lb/h	Glass type	Ceramic glass
Average particulate emission rate(3)	0.96 g/h	Glass surface – W x H	15 3/4″ x 8 1/8″
Average CO(11)	7.6 g/h	Canadian Standard (emissions)	CSA B415.1-10
Average electrical power consumption for ignition cycle(1)	3.02A (360 W)	USA Standard (emissions)	EPA, ASTM E2779
Average electrical power consumption for continuous operation(1)	1.3 – 2.5A (51 – 140 W)	Canadian Standard (safety)	ULC S627
Size	Medium	USA Standard (safety)	UL 1482, ASTM E1509
Alcove installation approved	Yes	Certified according to applicable standards	By an accredited laboratory (CAN/USA)
Mobile home approved	Yes, with fresh air intake	Warranty	Limited lifetime
High-efficiency certified appliance	Yes, EPA 2020 approved	Shipping weight	277 lb (126 kg)
Combustion technology	Top-feed

*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner’s manual, catalogues, flyers, magazines and/or web sites).

**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

1. Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
2. Optimum overall efficiency at a specific burn rate (LHV).
3. This appliance is officially tested and certified by an independent agency.
4. The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
5. As measured per CSA B415.1-10 stack loss method.
6. Higher Heating Value of the fuel.
7. Lower Heating Value of the fuel.
8. The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
9. Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
10. Carbon monoxyde.
