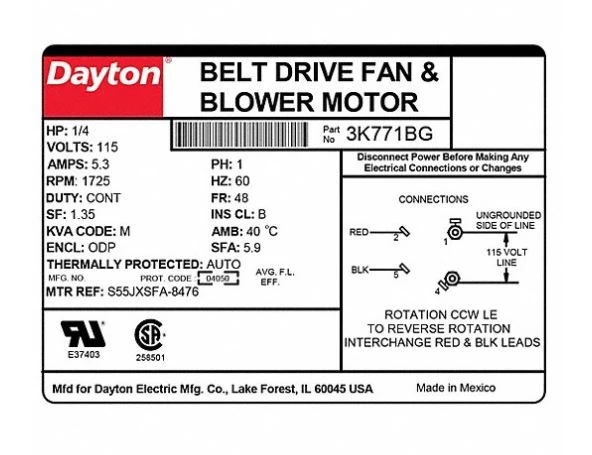

Dayton 3K771 Belt Drive Motor, 1/4 HP, Split-Phase

Split-phase belt drive HVAC AC motors have low to moderate starting torque and provide smooth, soft, start-ups for use in HVAC equipment that must gradually come up to speed.

Features

• Motor Application: HVAC/R
• Motor Sub Application: Belt Drive Fan/Blower
• Phase: Single
• Motor Design: Split-Phase
• HP: 1/4
• Nameplate RPM: 1,725
• No. of Speeds: 1
• Voltage: 115V AC
• Full Load Amps: 5.3
• Frame: 48
• Hz: 60
• Motor Service Factor: 1.35
• Motor Thermal Protection: Auto
• Ins. Class: B
• Max. Ambient Temp. : 40 Degrees C
• Duty Cycle: Continuous
