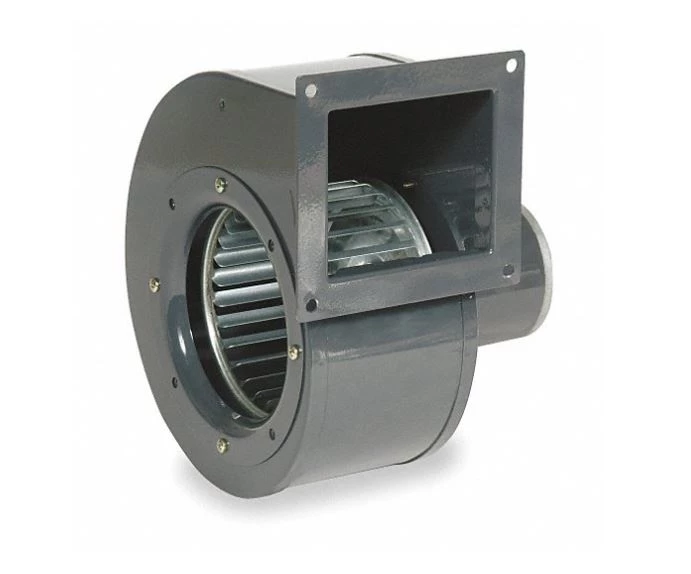

This DAYTON dynamically balanced blower mounts in any position and operates with minimal noise and vibration, to maintain CFM at higher static pressures. Open motor has cast-aluminum end shields for greater heat dissipation, resulting in less downtime and longer service life. Ball bearings.
Note: Not for use with speed controllers.
Features
- Blower Outlet Shape: Rectangular
- With Flange: Yes
- Blower Wheel Diameter: 5 1/8 in
- Blower Wheel Width: 3 11/32 in
- Blower Voltage: 115V AC
- Blower Motor Type: Permanent Split Capacitor
- Blower Thermal Protection: Auto
- Blower Conduit Box: Yes
- CFM @ 0.000-In. SP: 273
- CFM @ 0.100-In. SP: 245
- CFM @ 0.200-In. SP: 230
- CFM @ 0.300-In. SP: 210
- CFM @ 0.400-In. SP: 183
- CFM @ 0.500-In. SP: 135
- Hz: 50/60
- Phase: 1
- Full Load Amps: 0.77
- RPM: 1640
- Bearing Type: Ball
- Motor Enclosure: Open
- Motor Insulation: Class B
- Lead Length: 13 in
- Max. Ambient Temp. : 104 Degrees F
- Max. Inlet Temp. : 104 Degrees F
